Sportster 331TH13

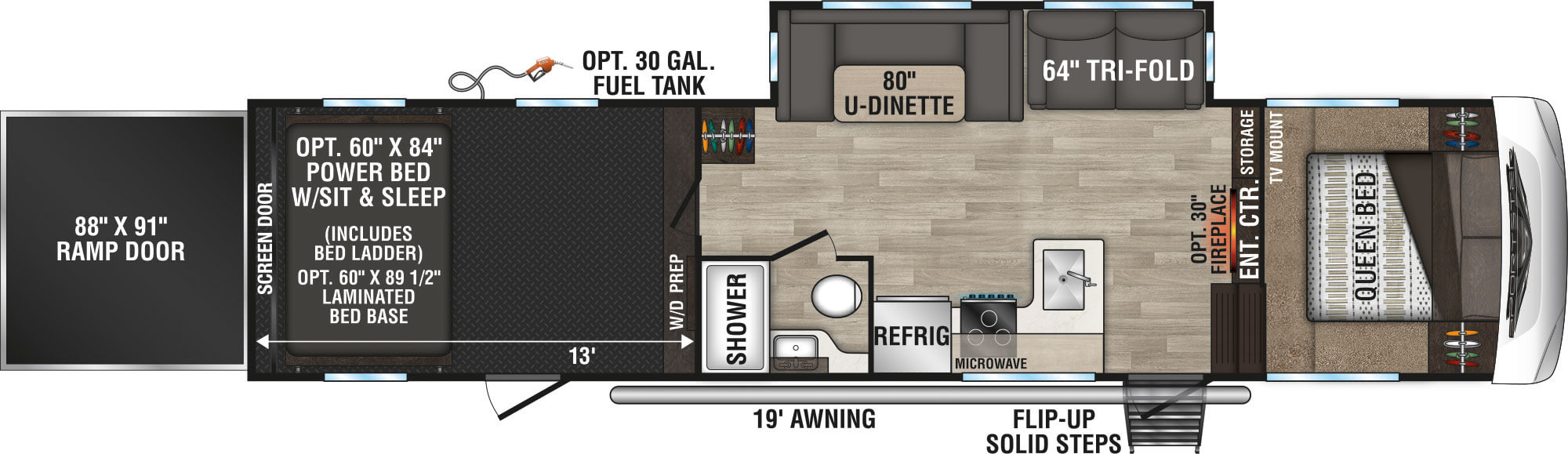

2022 KZ RV Sportster 331TH13 Fifth Wheel Toy Hauler Floorplan
UVW (Unloaded Vehicle Weight)* 9,780
Dry Hitch Weight* 2,180
Dry Axle Weight* 7,600
CCC (Cargo Carrying Capacity) 3,215
GVWR 12,995
Interior Height 95"
Exterior Height (with A/C) 12' 7"
Exterior Width 102"
Exterior Length** 38' 6"

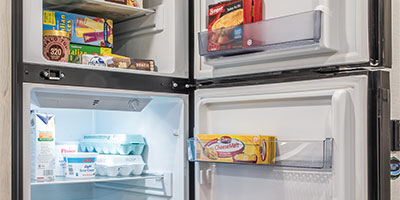

Refrigerator (Cubic Feet) 8
Water Heater Cap. (Gal. G/E w/DSI) 6
Fresh Water Cap. (Gal.) 75
Waste Water Cap. (Gal.) 32
Gray Water Cap. (Gal.) 32
LP Gas Cap. (Lbs.) 60
Furnace BTUs (1,000s) 30

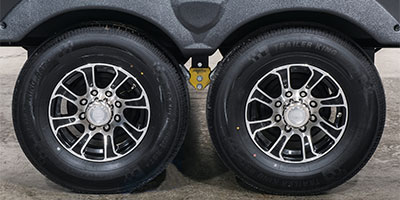

Tire Size 16"
Awning 19'

*This weight reflects the rolling average unit weight for each model. Your trailer weight will vary according to optional equipment.
**Exterior length is measured from rear of bumper to center of coupler.

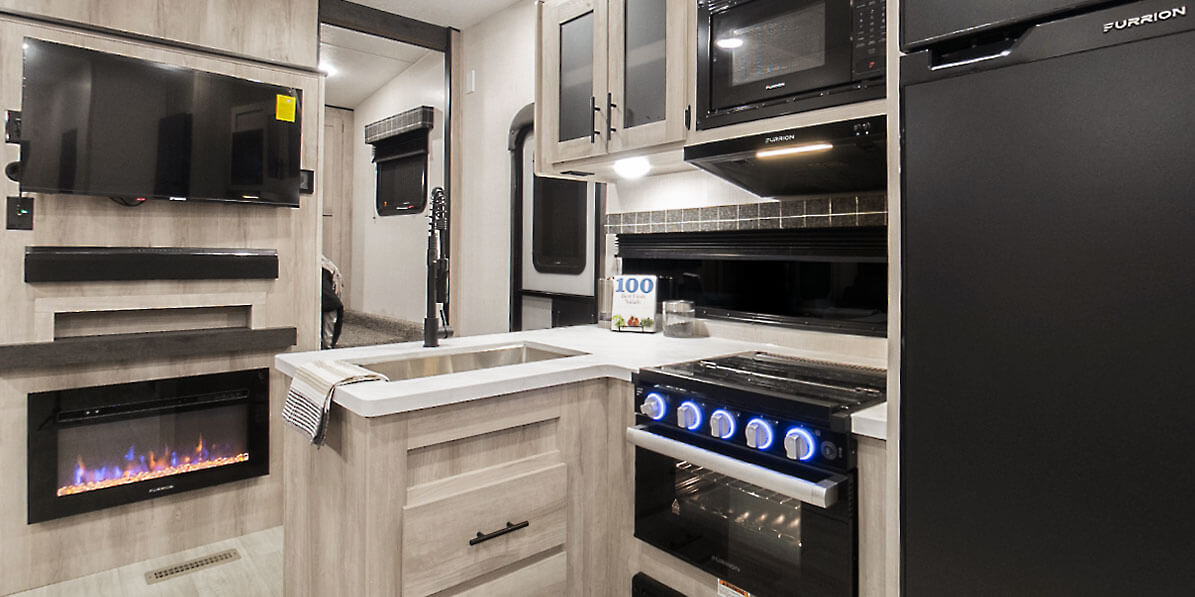

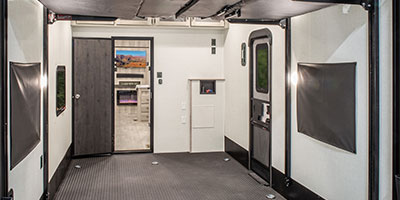

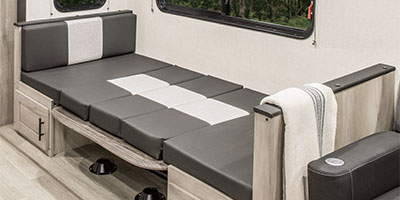

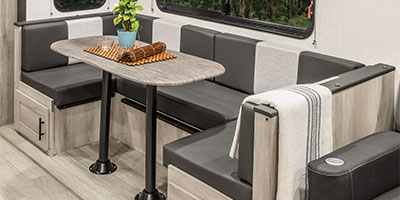

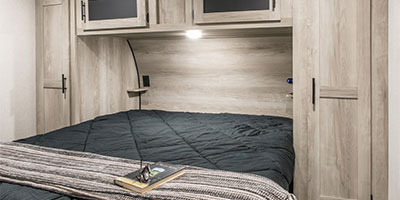

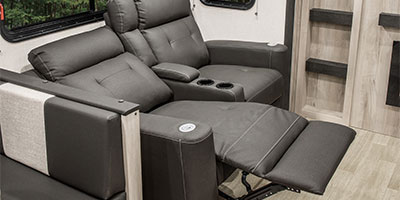

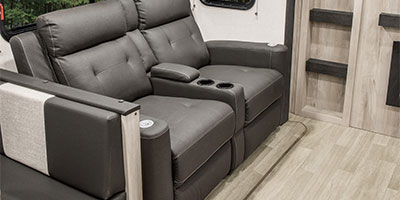

2022 - Interior 360

2022 - Videos

2022 - Shown in Gunmetal Décor

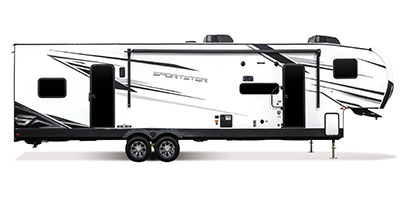

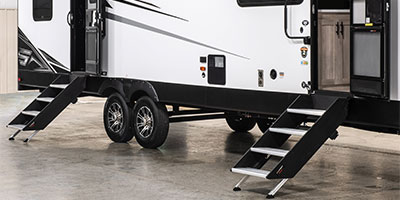

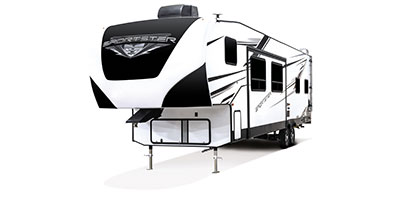

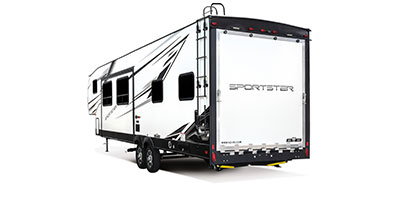

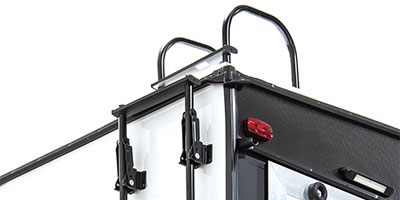

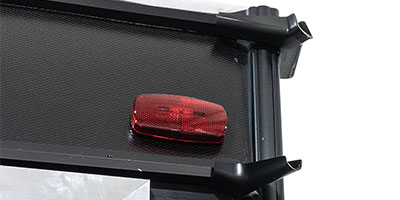

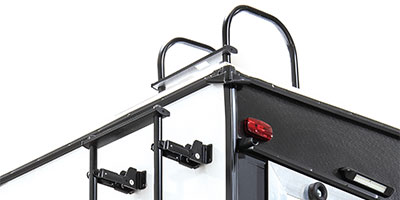

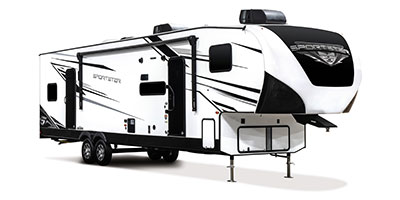

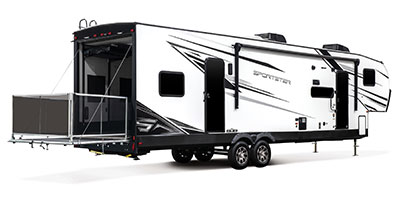

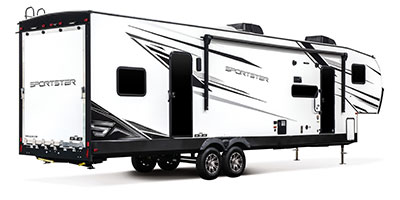

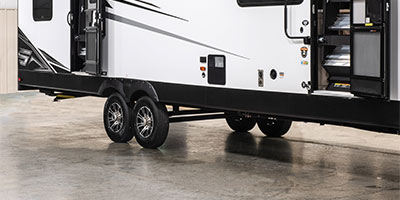

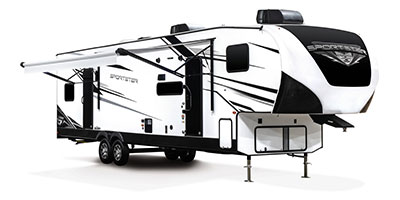

2022 - Exterior
