Sportsmen® 231RK

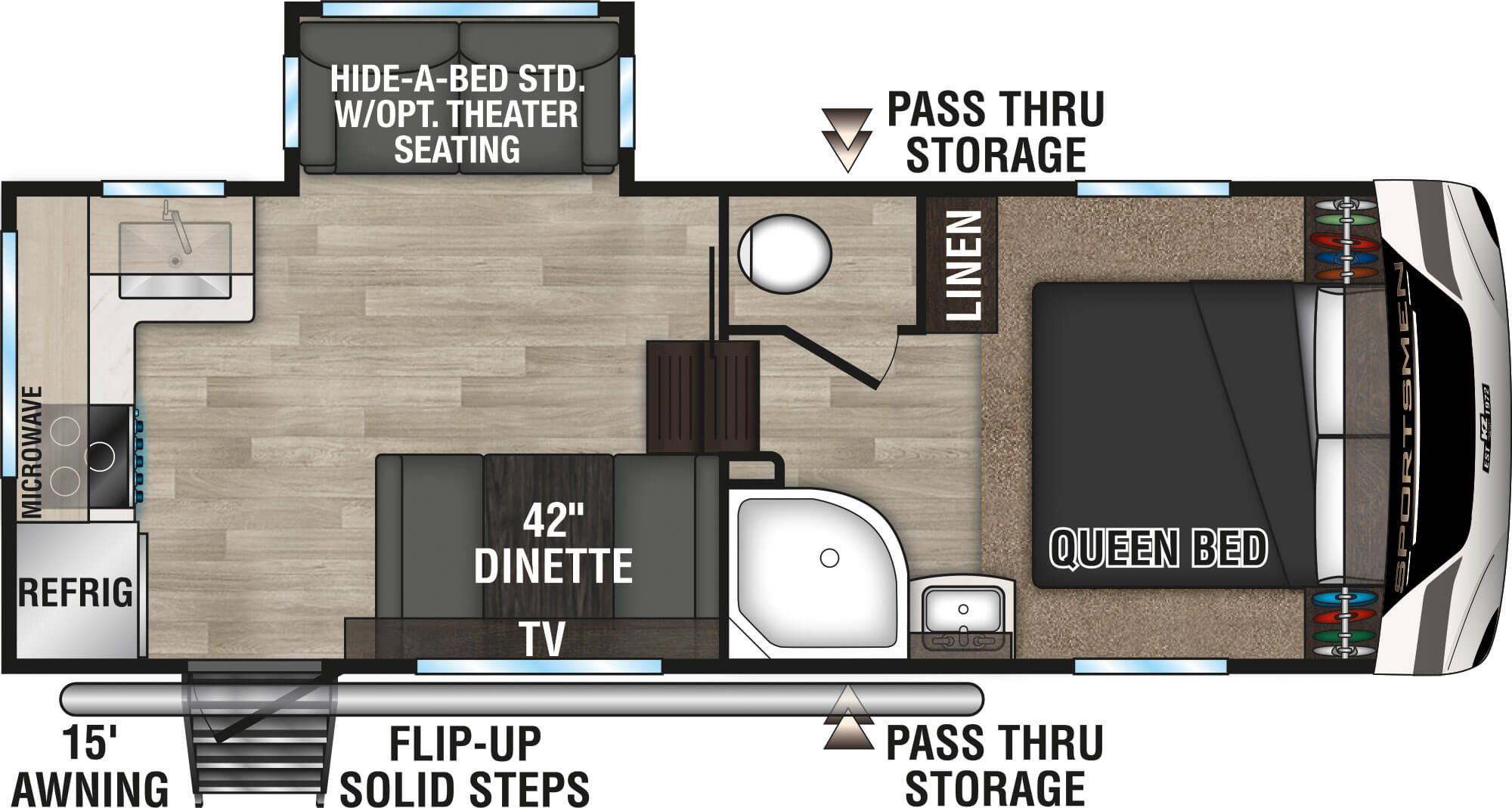

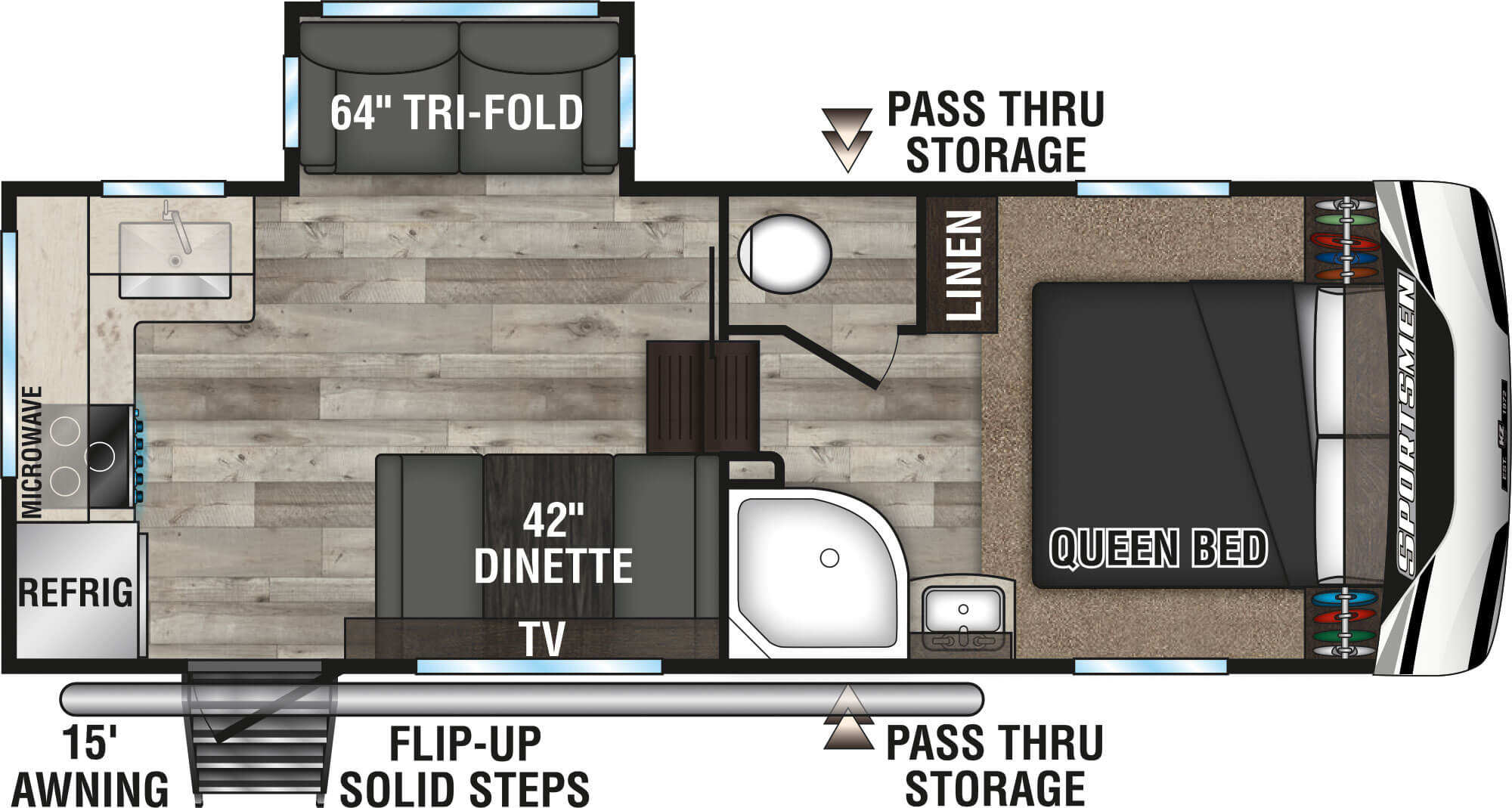

2020 KZ RV Sportsmen 231RK Fifth Wheel Floorplan
UVW (Unloaded Vehicle Weight)* 6,100
Dry Hitch Weight* 840
Dry Axle Weight* 5,260
NCC (Net Carrying Capacity) 900
GVWR 7,000
Interior Height 75"
Exterior Height (with A/C) 11' 11"
Exterior Width 96"
Exterior Length** 25' 3"
Refrigerator (Cubic Feet) 8
Water Heater Cap. (Gal. G/E w/DSI) 6
Fresh Water Cap. (Gal.) Including Water Heater Capacity 38
Waste Water Cap. (Gal.) 53
Gray Water Cap. (Gal.) 93
1/2 Bath Cap. (Gal.) N/A
LP Gas Cap. (Lbs.) 60
Furnace BTUs (1,000s) 30
Tire Size 15"
Awning 15'

*This weight reflects the rolling average unit weight for each model. Your trailer weight will vary according to optional equipment.
**Exterior length is measured from center of hitch pin to rear wall.
